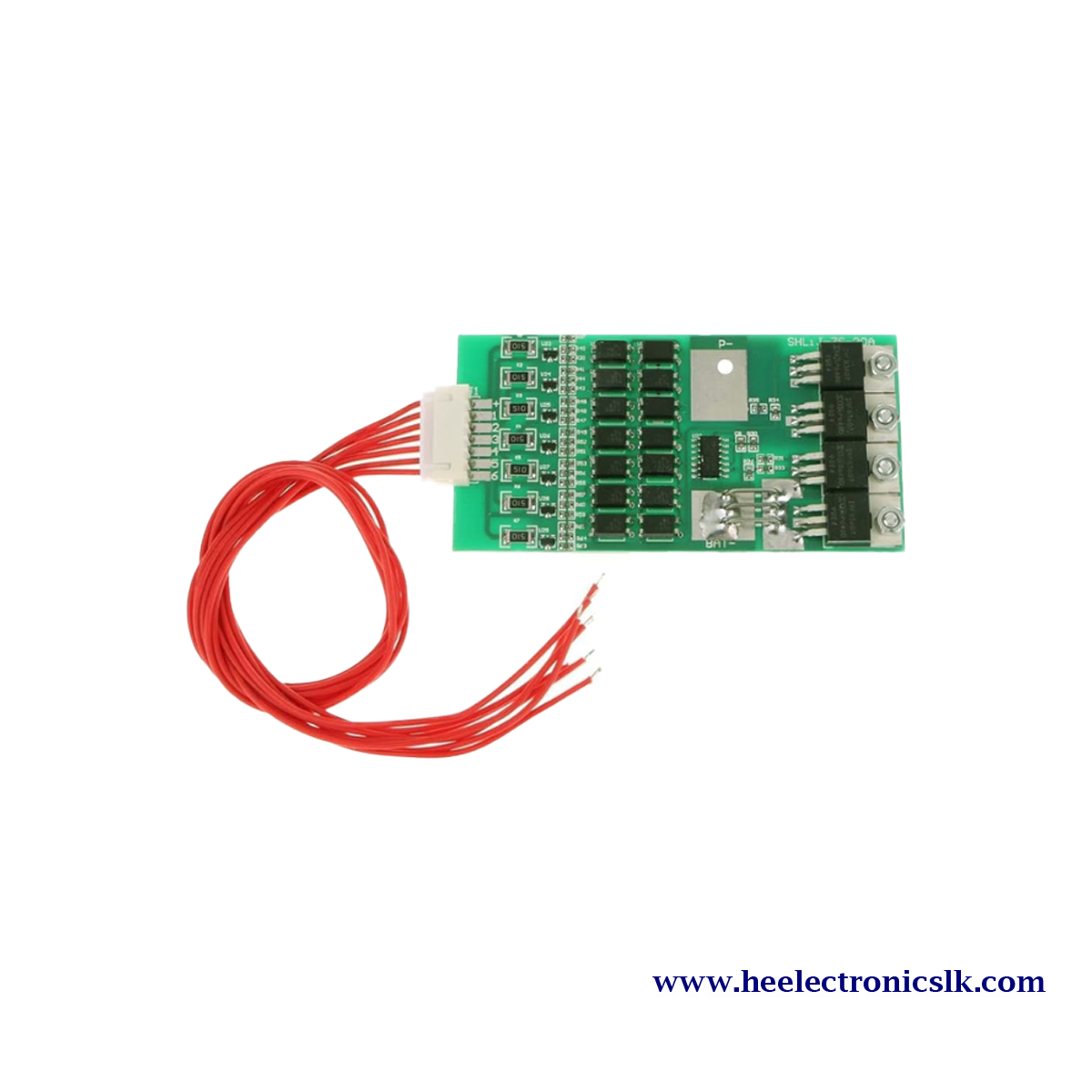

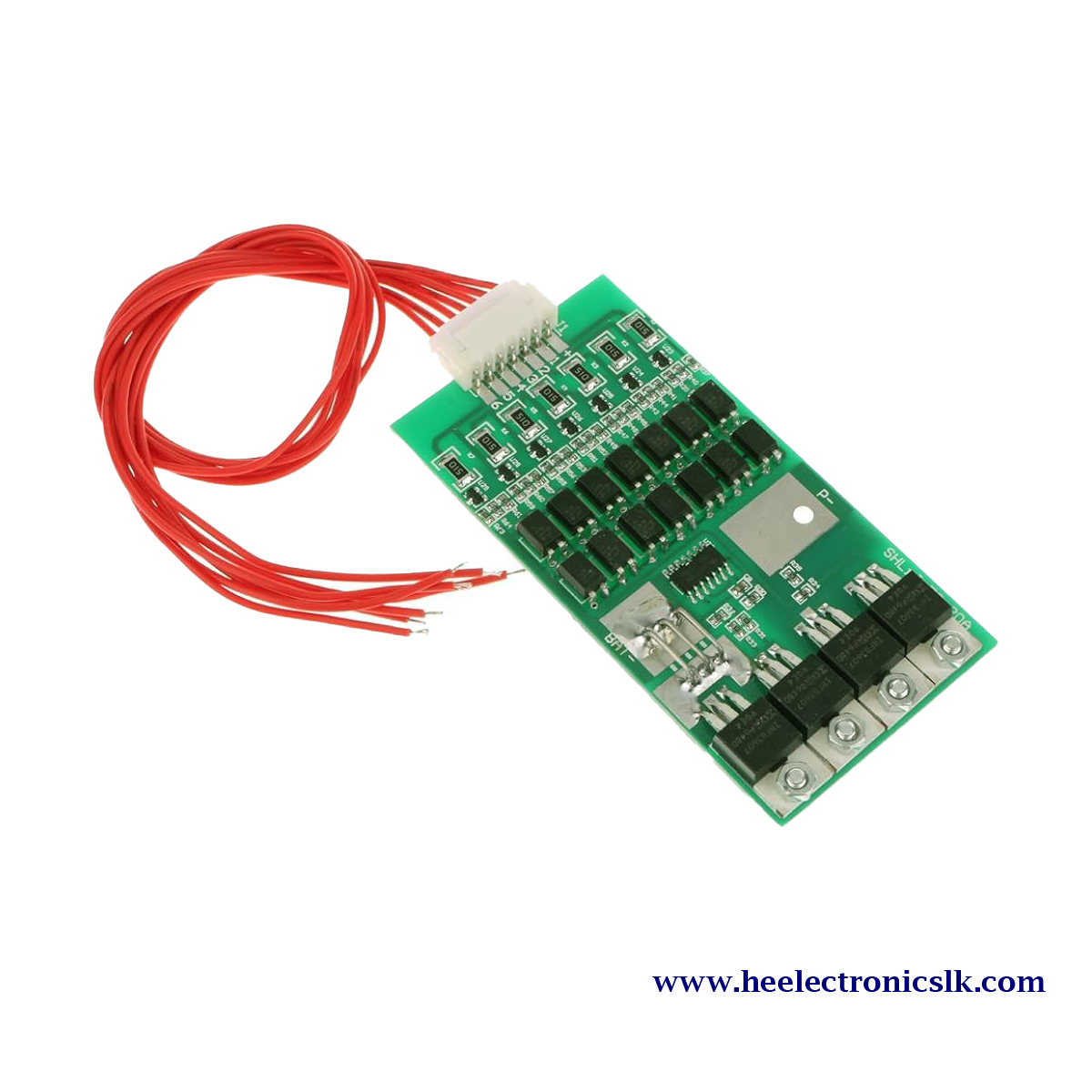

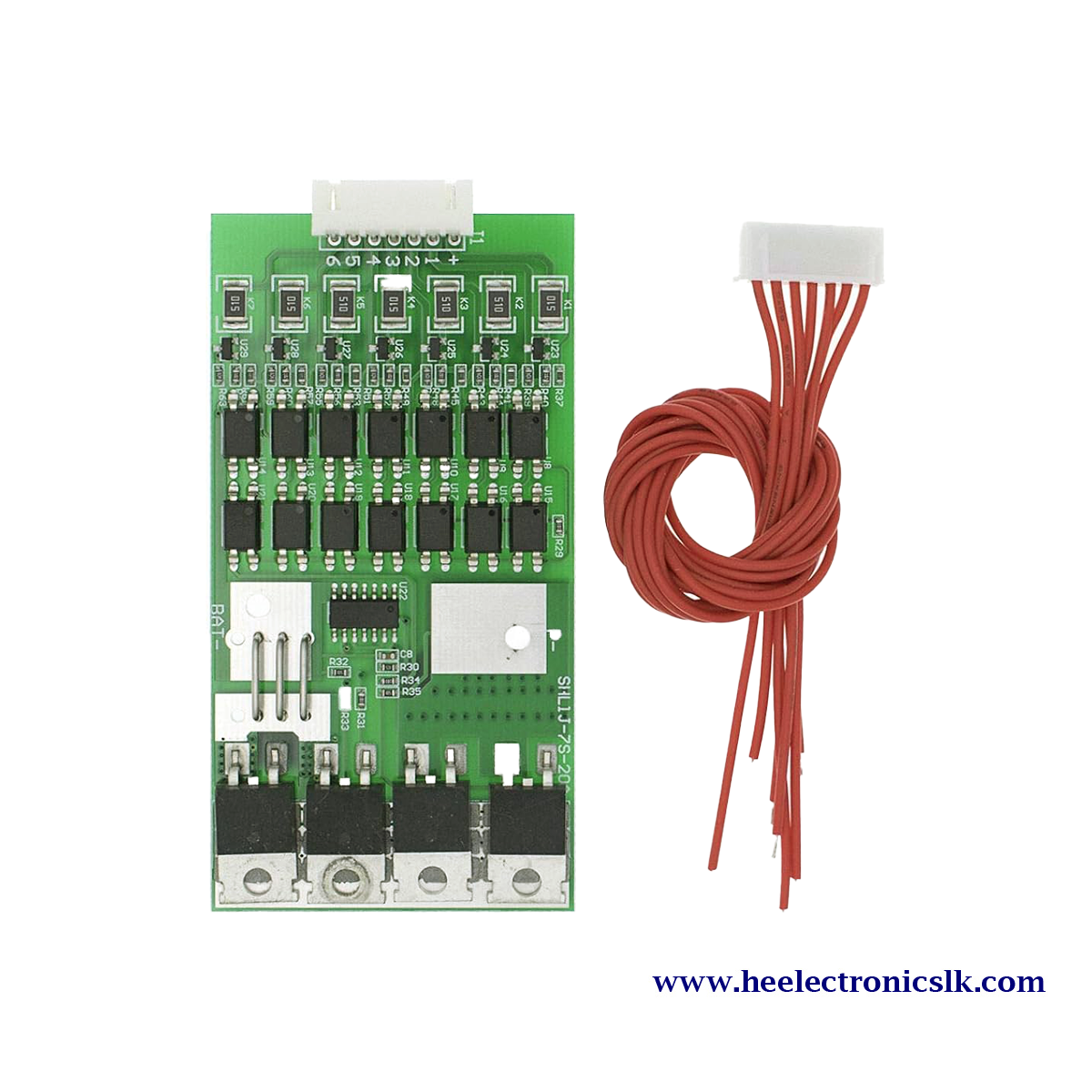

7S 20A 18650 (BMS) Charger Protection Board

LKR2190.00

Battery Configuration: 7S (7 cells in series)
Nominal Voltage: 24V
Operating Voltage Range: Typically 21V to 29.4V (depending on the specific cells used)
Maximum Continuous Discharge Current: 20A
Balancing Current: Typically 50mA to 60mA
Overcharge Protection: Typically 4.25V ± 0.05V per cell
Overdischarge Protection: Typically 2.5V ± 0.1V per cell
Overcurrent Protection: Triggered when discharge current exceeds the maximum limit
Short-Circuit Protection: Instantaneous protection in case of a short circuit
Temperature Protection: Yes (typically with a built-in thermistor)
Dimensions: Compact size, typically around 60mm x 35mm x 10mm
Weight: Lightweight, usually around 20-30 grams

SKU: AR262 Categories: Arduino, Battery, Sensors & Modules Tags: 18650, 20A, BMS

Description
Reviews (0)

Why Choose the 7S Cells 24V 20A Balancing Li-ion Lithium 18650 Battery BMS Protection Board?

The 7S Cells 24V 20A Balancing Li-ion Lithium 18650 Battery BMS Protection Board is an essential component for anyone building or managing a 24V lithium-ion battery pack. Its robust protection features, cell balancing capabilities, and high current handling make it ideal for a wide range of applications, from electric vehicles to solar energy storage. Whether you are a DIY enthusiast or a professional, this BMS ensures the safety, reliability, and longevity of your battery pack.

Order your 7S Cells 24V 20A Balancing Li-ion Lithium 18650 Battery BMS Protection Board today and protect your battery investment with advanced management and safety features!
