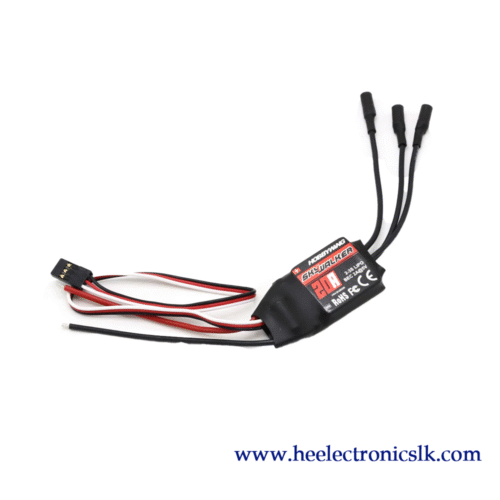

HobbyWing SkyWalker 20A Motor Speed Controller

HobbyWing SkyWalker 20A Motor Speed Controller – Specifications

• Continuous Current: 20A

• Peak Current: 40A

• Input Voltage: 2–3S LiPo (7.4V – 11.1V)

• BEC Output: 5V @ 3A (Linear BEC)

• Dimensions: 45 × 23 × 8 mm

• Weight: 19 g

Wiring Details

• Input Wires: 16AWG, 100 mm (no connector included)

• Output Wires: 18AWG, 75 mm

• Output Connectors: 3.5 mm female bullet connectors (pre-soldered)

• Input Connector: Not included (user must solder their own)

Programming & Features

• Programming Options:

  • Via transmitter

  • Via optional LED program card (sold separately)
