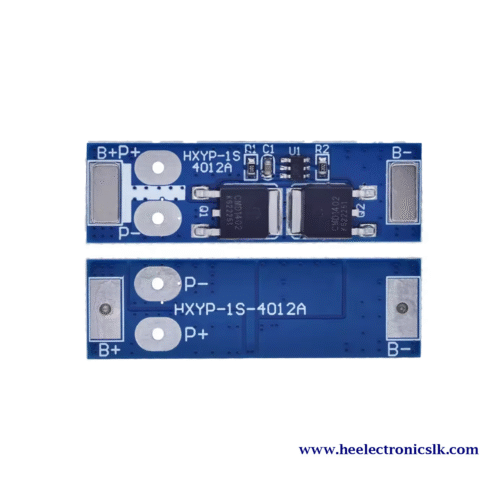

1S 12A 18650 (BMS) Charger Protection Board (HXYP-1S-4012A)

LKR250.00

Model : HXYP-1S-4012A
Overcharge detection voltage : 3.75V ± 0.25V
Overcharge release voltage : 3.6V ± 0.25V
Over-discharge detection voltage : 2.1±0.05V
Upper limit continuous current : 12A
Overcurrent detection current : 17A
Charging voltage : 3.6V
Shipment Dimensions : 4 × 4 × 1 cm

SKU: AR263 Categories: Arduino, Battery, Sensors & Modules Tags: 18650, 1S, BMS

Description
Reviews (0)

1S 12LiFePO4 1S 12A 3.6V BMS comes with over-charge, over-discharge, over-current, and short circuit protection. MOS transistor can control the battery charge and discharge, Built-in three-stage over-current detection circuit, for 3.6 V LifePO4 batteries. This is a highly accurate voltage detection circuit and provides low standby current consumption.

This is a small size, suitable for many requirements of high integration, low cost of the occasion, to meet a wide range of performance requirements to ensure that the battery pack is absolutely safe and reliable.
